Example 3: CSV with Edge Weights and Multiple Relations

This example demonstrates how to handle complex relationships where multiple edges can exist between the same pair of entities, each with different relation types and weights.

Data Structure

We have a CSV file representing business relationships between companies:

company_a	company_b	relation	date
Microsoft	OpenAI	invests_in	2023-01-23
Microsoft	OpenAI	partners_with	2023-03-15
Amazon	Whole Foods	acquires	2017-08-28
Amazon	Whole Foods	integrates_with	2018-02-14
Tesla	Panasonic	partners_with	2014-07-31
Tesla	Panasonic	supplies_to	2016-06-10
Google	Apple	competes_with	2007-06-29
Google	Apple	collaborates_with	2021-04-28

Notice that the same company pairs can have multiple different relationship types (e.g., Microsoft-OpenAI has both "invests_in" and "partners_with" relationships).

Schema Configuration

Vertices

We define a simple company vertex:

vertex_config:
    vertices:
    -   name: company
        fields:
        -   name

Edges

The key feature here is using relation_field to dynamically create different edge types:

edge_config:
    edges:
    -   source: company
        target: company
        relation_field: relation
        weights:
            direct:
            -   date

Key Concepts

relation_field Attribute

The relation_field: relation tells GraphCast to:

• Read the relation column from the CSV
• Create different edge types based on the values in that column
• Instead of a single edge type, we get multiple edge types: invests_in, partners_with, acquires, etc.

Edge Weights

The weights.direct: [date] configuration:

• Adds the date field as a weight property on each edge
• This allows temporal analysis of relationships
• The date becomes a property that can be used for filtering, sorting, or analysis

Resource Mapping

The resource configuration maps the CSV columns to vertices and edges:

resources:
-   resource_name: relations
    apply:
    -   target_vertex: company
        map:
            company_a: name
    -   target_vertex: company
        map:
            company_b: name

This creates two company vertices for each row and establishes the relationship between them.

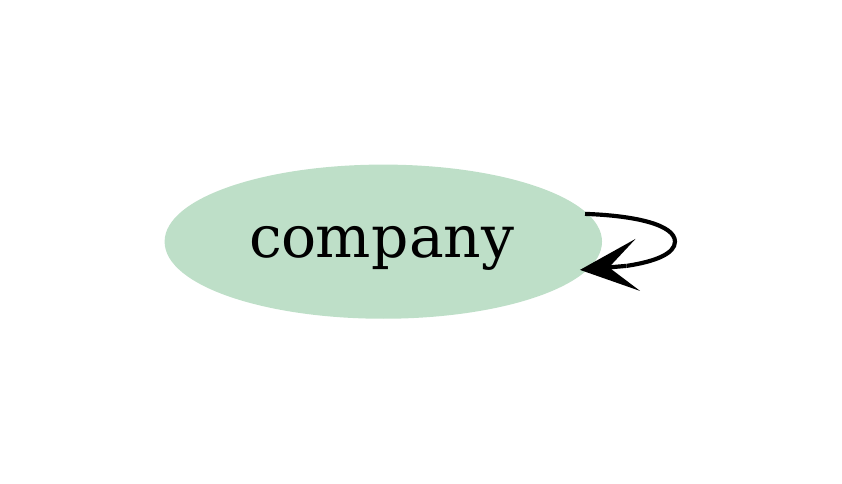

Graph Structure

The resulting graph structure shows multiple relationship types between the same entities:

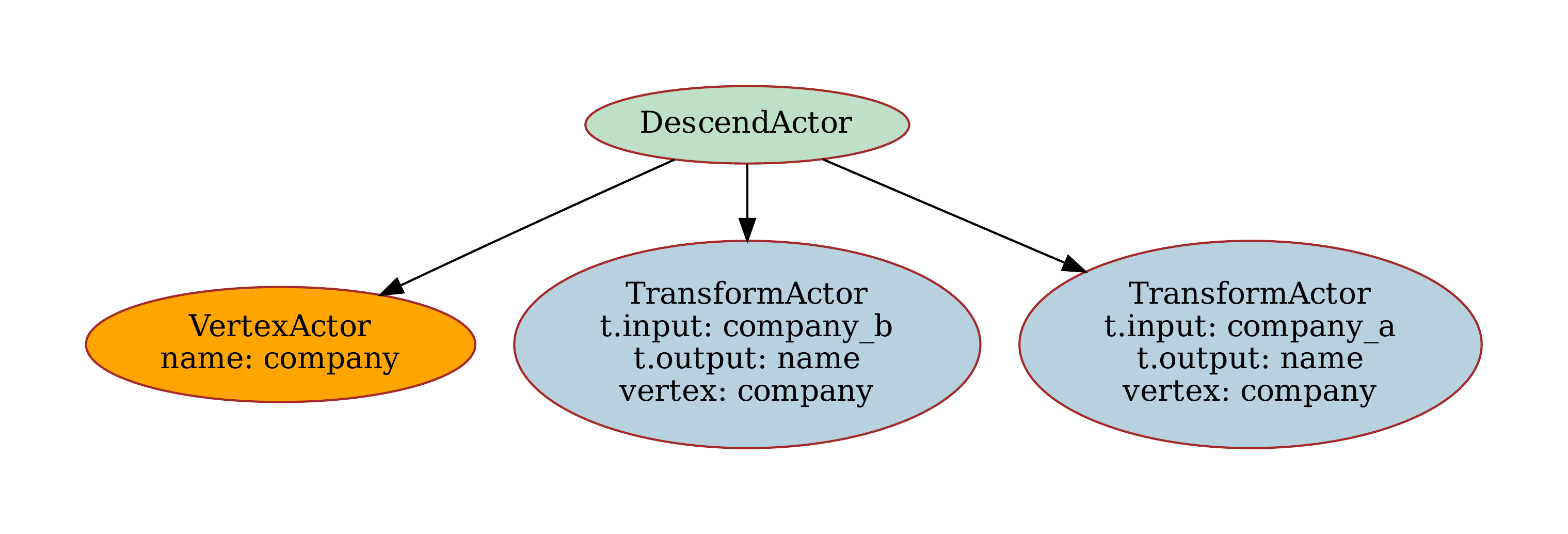

Resource Structure

The resource mapping creates a clear structure for processing the CSV data:

Data Ingestion

The ingestion process is straightforward:

from suthing import ConfigFactory, FileHandle
from graphcast import Caster, Patterns, Schema

schema = Schema.from_dict(FileHandle.load("schema.yaml"))

conn_conf = ConfigFactory.create_config({
    "protocol": "bolt",
    "hostname": "localhost",
    "port": 7688,
    "username": "neo4j",
    "password": "test!passfortesting",
})

patterns = Patterns.from_dict({
    "patterns": {
        "people": {"regex": "^relations.*\.csv$"},
    }
})

caster = Caster(schema)
caster.ingest_files(
    path=".",
    conn_conf=conn_conf,
    patterns=patterns,
    clean_start=True
)

Use Cases

This pattern is particularly useful for:

• Business Intelligence: Tracking multiple types of relationships between companies
• Temporal Analysis: Analyzing how relationships evolve over time
• Network Analysis: Understanding complex business ecosystems
• Compliance: Tracking different types of business arrangements

Key Takeaways

1. relation_field enables dynamic edge type creation from data
2. Multiple edges can exist between the same vertex pair
3. Edge weights add temporal or quantitative properties to relationships
4. Flexible modeling supports complex real-world business scenarios

Please refer to examples

For more examples and detailed explanations, refer to the API Reference.
