Example 1: Multiple Tabular Sources

Openalex is a comprehensive academic dataset. One of categories of their API entities is Works. Suppose we want to create a graph that contains a description of academic works and correctly map the references to works that either already exist in the database or will be populated later:

{
    "id": "https://openalex.org/W4300681084",
    "doi": "https://doi.org/10.15460/hup.78",
    "publication_date": "2006-01-23",
    "referenced_works": [
        "https://openalex.org/W617126653",
        "https://openalex.org/W658636438",
        "https://openalex.org/W2010066730",
        "https://openalex.org/W2039589765",
        "https://openalex.org/W2344506138"
    ],
}

In this example we will be interested in how to create vertices Work and Work → Work edges.

Let's define vertices as

 vertices:
 -   name: work
     fields:
     -   _key
     -   doi
     indexes:
     -   fields:
         -   _key
     -   unique: false
         fields:
         -   doi

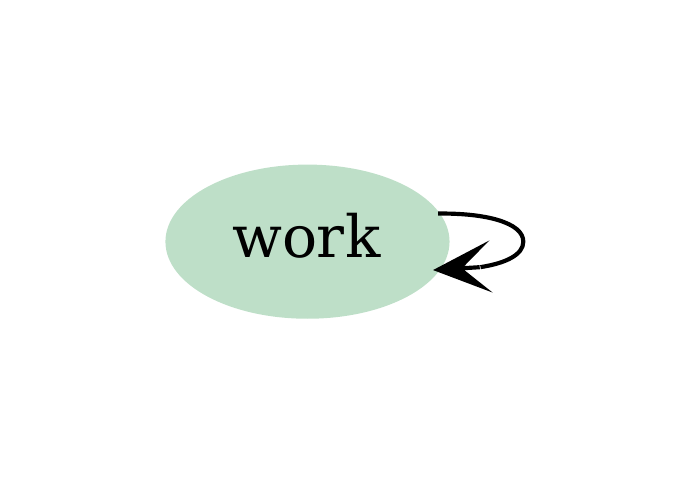

The graph structure is quite simple:

We will be using a transformation that truncates the suffix from a url, e.g. "https://openalex.org/W4300681084" → "W4300681084". So let's define a section for transforms that will contain reusable transforms, specified by name:

transforms:
    keep_suffix_id:
        foo: split_keep_part
        module: graphcast.util.transform
        params:
            sep: "/"
            keep: -1
        input:
        -   id
        output:
        -   _key

Let's define the mappings. We will apply keep_suffix_id to id and doi fields in several places with slightly different parameters. We will map the corresponding values to define instances of work vertex and define edges work → work.

-   resource_name: work
    apply:
    -   name: keep_suffix_id
    -   name: keep_suffix_id
        params:
            sep: "/"
            keep: [-2, -1]
        input:
        -   doi
        output:
        -   doi
    -   vertex: work
        discriminant: _top_level
    -   key: referenced_works
        apply:
        -   vertex: work
        -   name: keep_suffix_id
    -   source: work
        target: work
        source_discriminant: _top_level

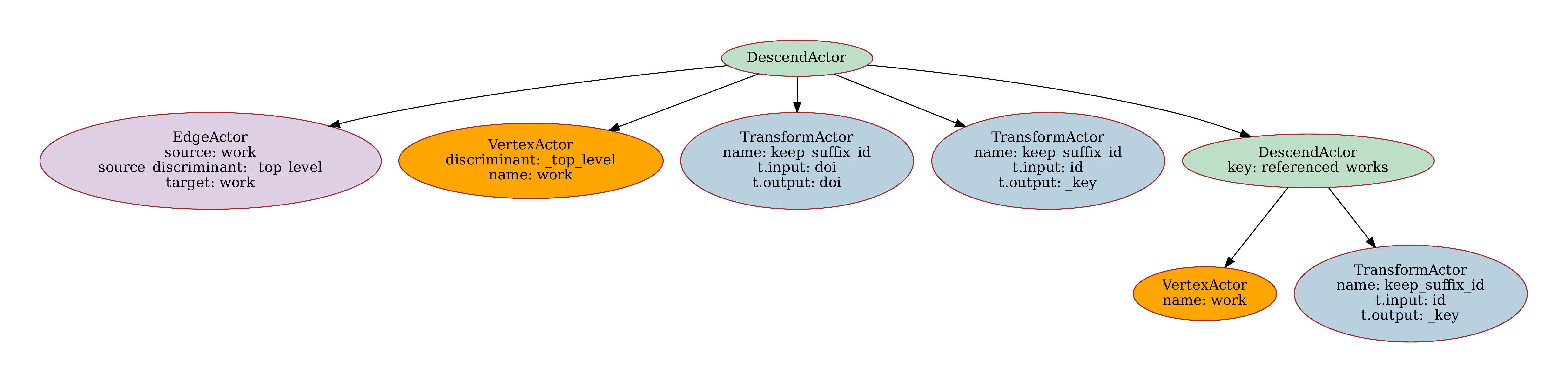

Works Resource

Now as you noticed the document has a nested list under referenced_works. In order to deal with which we introduce a DescendActor, that contains a transform and a mapping to Work vertex under apply.

Since we are defining a refers to relation, we need some extra configuration: - we temporarily split works into two groups by add a discriminant to the top level Work vertex:

vertex: work
discriminant: _top_level

- the edge is then defined by picking _top_level vertices as specified by source_discriminant attribute:

source: work
target: work
source_discriminant: _top_level

Transforming the data and ingesting it into an ArangoDB takes a few lines of code:

from suthing import ConfigFactory, FileHandle
from graphcast import Caster, Patterns, Schema

schema = Schema.from_dict(FileHandle.load("schema.yaml"))

caster = Caster(schema)

conn_conf = ConfigFactory.create_config(FileHandle.load("../arango.creds.json"))

patterns = Patterns.from_dict(
    {
        "patterns": {
            "work": {"regex": "\Sjson$"},
        }
    }
)

caster.ingest_files(
    path=".", conn_conf=conn_conf, patterns=patterns, clean_start=True
)

Please refer to examples

For more examples and detailed explanations, refer to the API Reference.
