Example 5: PostgreSQL Schema Inference and Ingestion¶

This example demonstrates how to automatically infer a graph schema from a PostgreSQL database and ingest data directly from PostgreSQL tables into a graph database. This is particularly useful for migrating relational data to graph databases or creating graph views of existing PostgreSQL databases.

Overview¶

Instead of manually defining schemas and exporting data to files, this example shows how to:

Automatically detect vertex-like and edge-like tables in PostgreSQL
Infer the graph schema from the database structure
Map PostgreSQL types to graflo Field types automatically
Create patterns that map PostgreSQL tables to graph resources
Ingest data directly from PostgreSQL into a graph database

PostgreSQL Database Structure¶

The example uses a PostgreSQL database with a typical 3NF (Third Normal Form) schema:

Vertex Tables (Entities)¶

users - User accounts:

id (SERIAL PRIMARY KEY) - Unique user identifier
name (VARCHAR) - User full name
email (VARCHAR, UNIQUE) - User email address
created_at (TIMESTAMP) - Account creation timestamp

products - Product catalog:

id (SERIAL PRIMARY KEY) - Unique product identifier
name (VARCHAR) - Product name
price (DECIMAL) - Product price
description (TEXT) - Product description
created_at (TIMESTAMP) - Product creation timestamp

Edge Tables (Relationships)¶

purchases - Purchase transactions linking users to products:

id (SERIAL PRIMARY KEY) - Unique purchase identifier
user_id (INTEGER, FOREIGN KEY → users.id) - Purchasing user
product_id (INTEGER, FOREIGN KEY → products.id) - Purchased product
purchase_date (TIMESTAMP) - Date and time of purchase
quantity (INTEGER) - Number of items purchased
total_amount (DECIMAL) - Total purchase amount

follows - User follow relationships (self-referential):

id (SERIAL PRIMARY KEY) - Unique follow relationship identifier
follower_id (INTEGER, FOREIGN KEY → users.id) - User who is following
followed_id (INTEGER, FOREIGN KEY → users.id) - User being followed
created_at (TIMESTAMP) - When the follow relationship was created

Automatic Schema Inference¶

The infer_schema_from_postgres() function automatically analyzes your PostgreSQL database and creates a complete graflo Schema. This process involves several sophisticated steps:

How Schema Inference Works¶

Table Discovery: The function queries PostgreSQL's information schema to discover all tables in the specified schema
Column Analysis: For each table, it examines columns, data types, constraints (primary keys, foreign keys), and relationships
Table Classification: Tables are classified as either vertex tables or edge tables using heuristics
Schema Generation: A complete graflo Schema object is constructed with vertices, edges, resources, and type mappings

Detection Heuristics¶

The inference engine uses intelligent heuristics to classify tables:

Vertex Tables:¶

Have a primary key (identifies unique entities)
Contain descriptive columns beyond just foreign keys
Represent domain entities (users, products, etc.)
Typically have more non-foreign-key columns than foreign keys

Edge Tables:

Have 2+ foreign keys (representing relationships between entities)
May have additional attributes (weights, timestamps, quantities)
Represent relationships or transactions between entities
Foreign keys point to vertex tables

Edge Relation Inference:

The system analyzes table names to infer relationship names
For example, purchases table creates a relationship from users to products
Self-referential tables (like follows) are automatically detected
Uses fuzzy matching to identify source and target vertices from table names

Automatic Type Mapping¶

PostgreSQL types are automatically mapped to graflo Field types with proper type information:

PostgreSQL Type	graflo Field Type	Notes
`INTEGER`, `BIGINT`, `SERIAL`	`INT`	Integer types preserved
`VARCHAR`, `TEXT`, `CHAR`	`STRING`	String types preserved
`TIMESTAMP`, `DATE`, `TIME`	`DATETIME`	Temporal types preserved
`DECIMAL`, `NUMERIC`, `REAL`, `DOUBLE PRECISION`	`FLOAT`	Numeric types converted
`BOOLEAN`	`BOOL`	Boolean types preserved

Inferred Schema Structure¶

The inferred schema automatically includes:

Vertices: users, products (with typed fields matching PostgreSQL columns)
Edges:
users → products (from purchases table) with weights: purchase_date, quantity, total_amount
users → users (from follows table) with weight: created_at

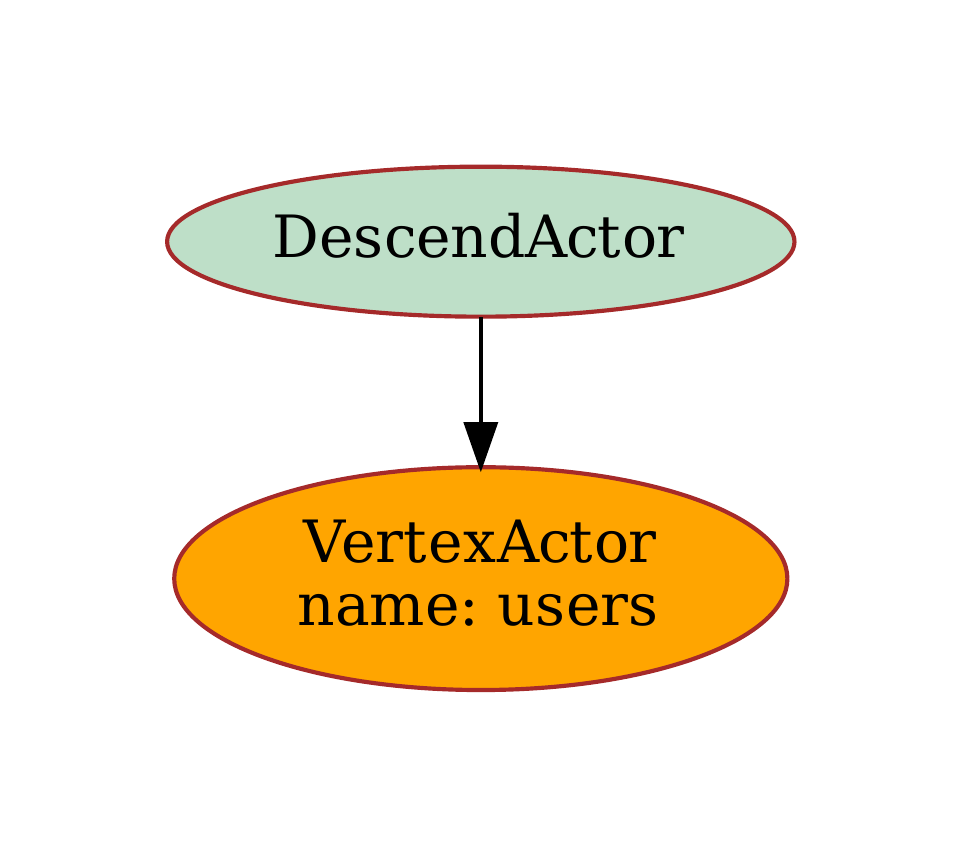

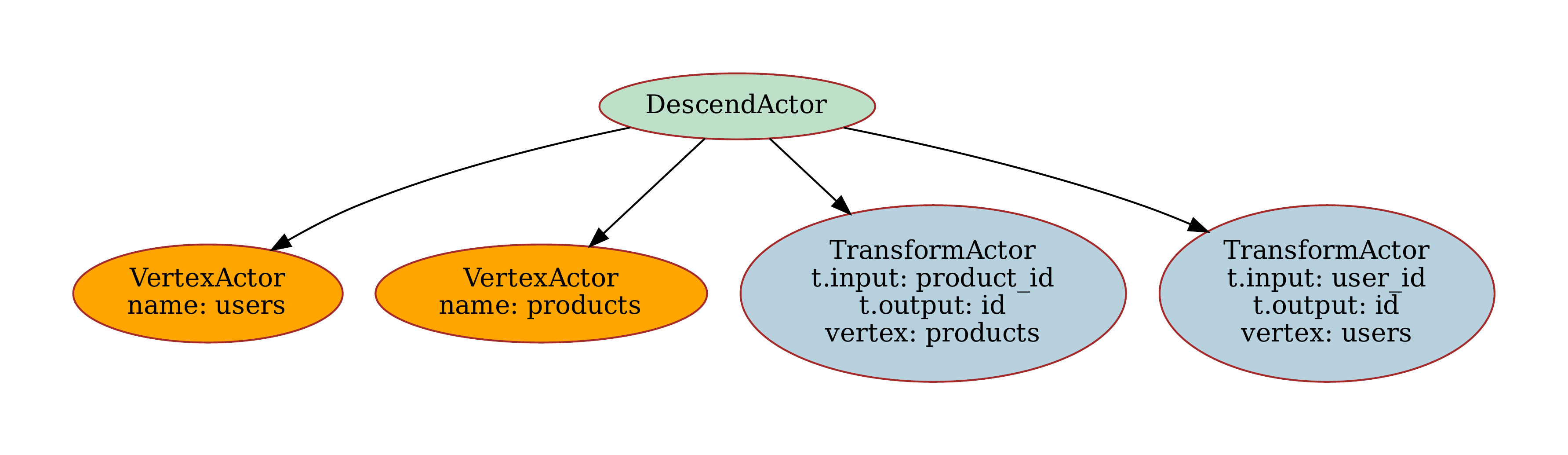

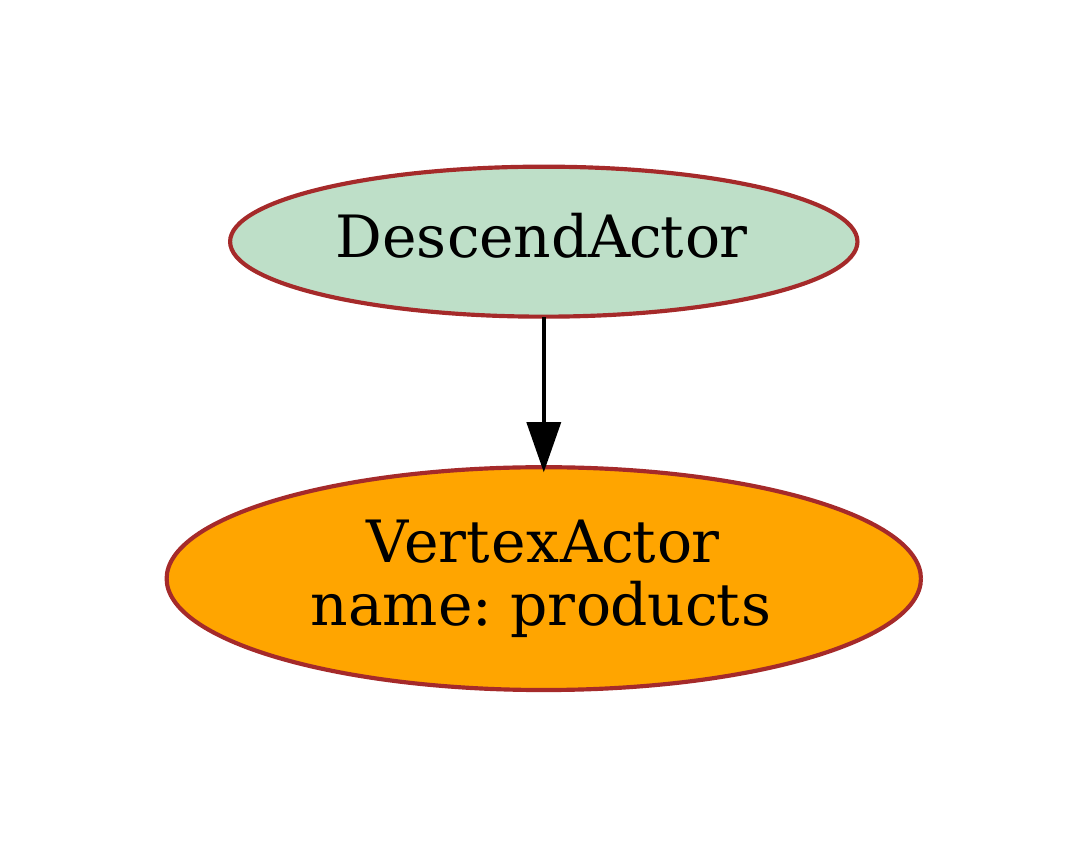

Resources: Automatically created for each table with appropriate actors
Indexes: Primary keys become vertex indexes, foreign keys become edge indexes
Weights: Additional columns in edge tables become edge weight properties

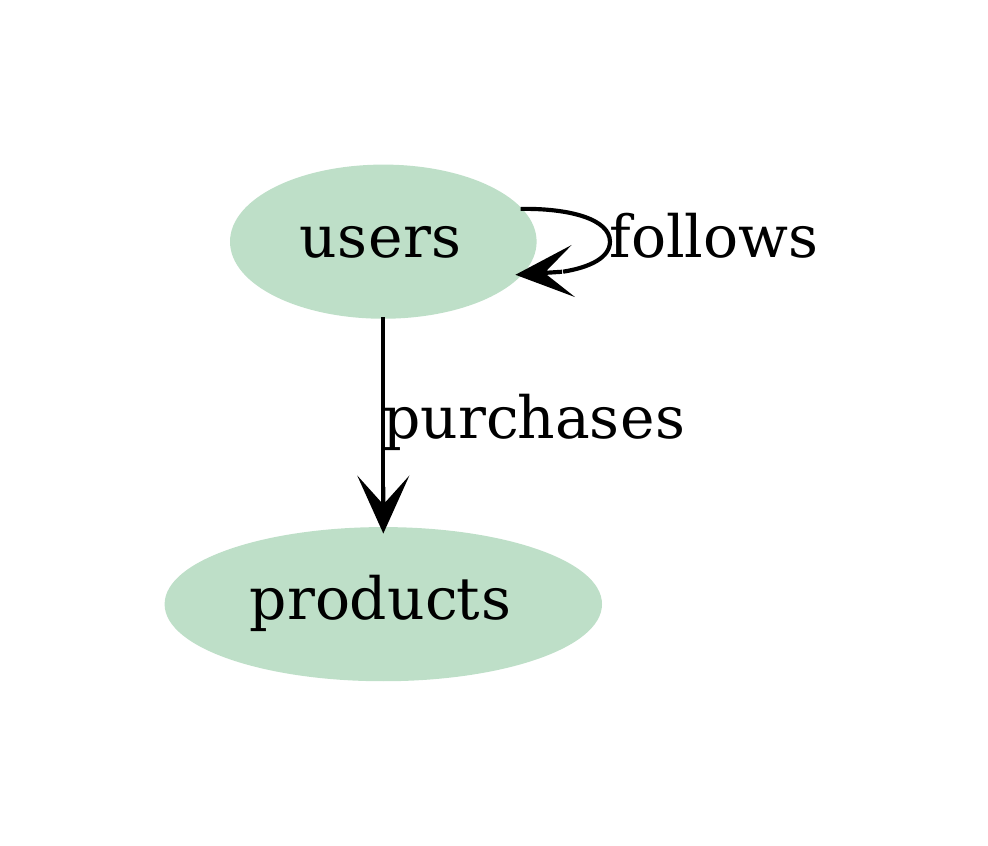

Graph Structure Visualization¶

The resulting graph structure shows the relationships between entities:

This diagram shows:

Vertices: users and products as nodes
Edges:
users → products relationship (purchases)
users → users self-referential relationship (follows)

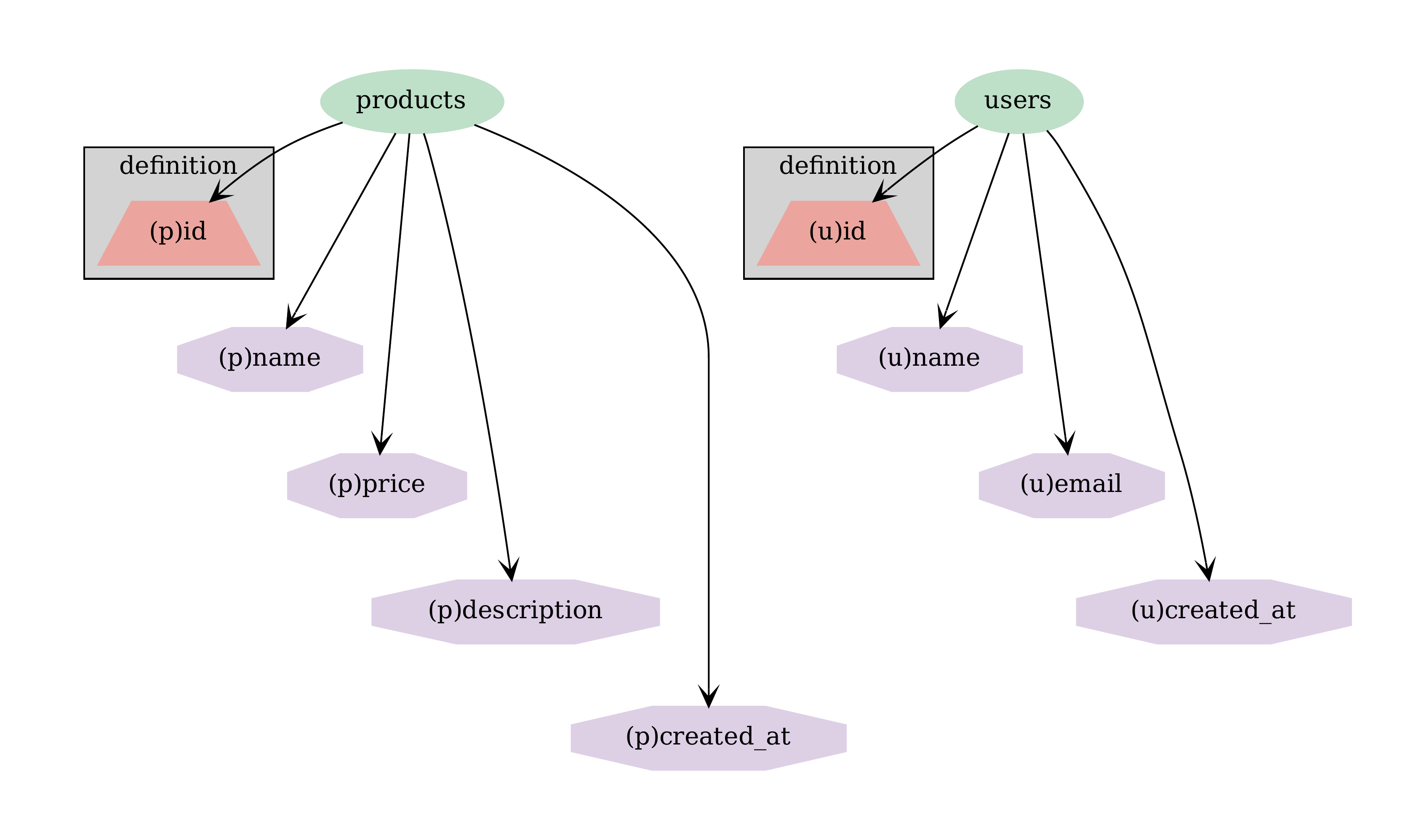

Vertex Fields Structure¶

Each vertex includes typed fields inferred from PostgreSQL columns:

Step-by-Step Guide¶

Step 1: Connect to PostgreSQL¶

First, establish a connection to your PostgreSQL database. This connection will be used to: - Query the database schema (tables, columns, constraints) - Read data from tables during ingestion - Understand foreign key relationships

What happens: The PostgresConnection class wraps a psycopg2 connection and provides methods for schema introspection and data querying.

from graflo.db.postgres import PostgresConnection
from graflo.db.connection.onto import PostgresConfig

# Option 1: Load from docker/postgres/.env (recommended)
postgres_conf = PostgresConfig.from_docker_env()

# Option 2: Load from environment variables
# Set: POSTGRES_URI, POSTGRES_USERNAME, POSTGRES_PASSWORD, POSTGRES_DATABASE, POSTGRES_SCHEMA_NAME
# postgres_conf = PostgresConfig.from_env()

# Option 3: Create config directly
# postgres_conf = PostgresConfig(
#     uri="postgresql://localhost:5432",
#     username="postgres",
#     password="postgres",
#     database="mydb",
#     schema_name="public"
# )

postgres_conn = PostgresConnection(postgres_conf)

Step 2: Initialize Database (Optional)¶

If you need to set up the database schema, you can load it from a SQL file:

from pathlib import Path

def load_mock_schema_if_needed(postgres_conn: PostgresConnection) -> None:
    """Load mock schema SQL file into PostgreSQL database if it exists."""
    schema_file = Path("mock_schema.sql")

    if not schema_file.exists():
        logger.warning("Mock schema file not found. Assuming database is already initialized.")
        return

    logger.info(f"Loading mock schema from {schema_file}")
    with open(schema_file, "r") as f:
        sql_content = f.read()

    # Execute SQL statements
    with postgres_conn.conn.cursor() as cursor:
        # Parse and execute statements...
        cursor.execute(sql_content)
        postgres_conn.conn.commit()

load_mock_schema_if_needed(postgres_conn)

Step 3: Infer Schema from PostgreSQL¶

Automatically generate a graflo Schema from your PostgreSQL database. This is the core of the automatic inference process:

What infer_schema_from_postgres() does:

Queries PostgreSQL Information Schema: The function queries PostgreSQL's information schema to discover all tables in the specified schema. It retrieves column information (names, types, constraints), identifies primary keys and foreign keys, and understands table relationships.
Classifies Tables: Each table's structure is analyzed to determine if it's a vertex table (entity) or edge table (relationship). This classification uses heuristics based on primary keys, foreign keys, and column counts.
Infers Relationships: For edge tables, the system identifies source and target vertices from foreign keys. It uses table name analysis and fuzzy matching to infer relationship names, and handles self-referential relationships (like follows).
Maps Types: PostgreSQL column types are converted to graflo Field types, preserving type information for validation and optimization.
Creates Resources: Resource definitions are generated for each table with appropriate actors (VertexActor for vertex tables, EdgeActor for edge tables). Foreign keys are mapped to vertex matching keys.

from graflo.db.postgres import infer_schema_from_postgres
from graflo.onto import DBFlavor
from graflo.db.connection.onto import ArangoConfig, Neo4jConfig

# Connect to target graph database to determine flavor
target_config = ArangoConfig.from_docker_env()  # or Neo4jConfig, TigergraphConfig

# Determine db_flavor from target config
from graflo.db import DBType
db_type = target_config.connection_type
db_flavor = DBFlavor(db_type.value) if db_type in (DBType.ARANGO, DBType.NEO4J, DBType.TIGERGRAPH) else DBFlavor.ARANGO

# Infer schema automatically
schema = infer_schema_from_postgres(
    postgres_conn,
    schema_name="public",  # PostgreSQL schema name
    db_flavor=db_flavor     # Target graph database flavor
)

The inferred schema will have:

Vertices: users, products with typed fields matching PostgreSQL column types
Edges:
users → products (from purchases table) with weight properties
users → users (from follows table) with weight properties
Resources: Automatically created for each table with appropriate actors

What happens during inference:

Table Analysis: Each table is examined for primary keys, foreign keys, and column types
Vertex Detection: Tables with primary keys and descriptive columns become vertices
Edge Detection: Tables with 2+ foreign keys become edges, with source/target inferred from foreign key relationships
Type Mapping: PostgreSQL column types are mapped to graflo Field types
Resource Creation: Each table gets a corresponding resource with actors that map PostgreSQL rows to graph elements
Weight Extraction: Non-key columns in edge tables become edge weight properties

Step 4: Save Inferred Schema (Optional)¶

You can save the inferred schema to a YAML file for inspection or modification:

import yaml
from pathlib import Path

schema_output_file = Path("generated-schema.yaml")
schema_dict = schema.to_dict()

with open(schema_output_file, "w") as f:
    yaml.safe_dump(schema_dict, f, default_flow_style=False, sort_keys=False)

logger.info(f"Inferred schema saved to {schema_output_file}")

Step 5: Create Patterns from PostgreSQL Tables¶

Create Patterns that map PostgreSQL tables to resources:

from graflo.db.postgres import create_patterns_from_postgres

# Create patterns from PostgreSQL tables
patterns = create_patterns_from_postgres(
    postgres_conn,
    schema_name="public"
)

This creates TablePattern instances for each table, which:

Map table names to resource names (e.g., users table → users resource)
Store PostgreSQL connection configuration
Enable the Caster to query data directly from PostgreSQL using SQL

How Patterns Work:

Each TablePattern contains the PostgreSQL connection info and table name
During ingestion, the Caster queries each table using SQL SELECT * FROM table_name
Data is streamed directly from PostgreSQL without intermediate files
This enables efficient processing of large tables

Step 6: Ingest Data into Graph Database¶

Finally, ingest the data from PostgreSQL into your target graph database. This is where the actual data transformation and loading happens:

What happens during ingestion:

Resource Processing: For each resource in the schema, the system queries the corresponding PostgreSQL table using SQL and streams rows from PostgreSQL without loading everything into memory.
Vertex Creation: For vertex table resources, each row becomes a vertex. Column values become vertex properties, and the primary key becomes the vertex key/index.
Edge Creation: For edge table resources, each row becomes an edge. Foreign keys are used to find source and target vertices, additional columns become edge weight properties, and the edge connects the matched source vertex to the matched target vertex.
Batch Processing: Data is processed in batches for efficiency. Vertices are created/upserted first, then edges are created after vertices exist.
Graph Database Storage: Data is written to the target graph database (ArangoDB/Neo4j/TigerGraph) using database-specific APIs for optimal performance. The system handles duplicates and updates based on indexes.

from graflo import Caster

# Create Caster with inferred schema
caster = Caster(schema)

# Ingest data from PostgreSQL into graph database
from graflo.caster import IngestionParams

ingestion_params = IngestionParams(
    clean_start=True,  # Clear existing data first
)

caster.ingest(
    output_config=target_config,  # Target graph database config
    patterns=patterns,             # PostgreSQL table patterns
    ingestion_params=ingestion_params,
)

# Cleanup
postgres_conn.close()

Complete Example¶

Here's the complete example combining all steps:

import logging
from pathlib import Path
import yaml

from graflo import Caster
from graflo.onto import DBFlavor
from graflo.db import DBType
from graflo.db.postgres import (
    PostgresConnection,
    create_patterns_from_postgres,
    infer_schema_from_postgres,
)
from graflo.db.connection.onto import ArangoConfig, PostgresConfig

logger = logging.getLogger(__name__)

# Step 1: Connect to PostgreSQL (source database)
postgres_conf = PostgresConfig.from_docker_env()
postgres_conn = PostgresConnection(postgres_conf)

# Step 2: Initialize database with mock schema if needed
# (Implementation details omitted - see full example in examples/5-ingest-postgres/ingest.py)

# Step 3: Connect to target graph database
target_config = ArangoConfig.from_docker_env()  # or Neo4jConfig, TigergraphConfig

# Step 4: Infer Schema from PostgreSQL database structure
db_type = target_config.connection_type
db_flavor = (
    DBFlavor(db_type.value)
    if db_type in (DBType.ARANGO, DBType.NEO4J, DBType.TIGERGRAPH)
    else DBFlavor.ARANGO
)

schema = infer_schema_from_postgres(
    postgres_conn,
    schema_name="public",
    db_flavor=db_flavor
)

# Step 5: Save inferred schema to YAML (optional)
schema_output_file = Path("generated-schema.yaml")
with open(schema_output_file, "w") as f:
    yaml.safe_dump(schema.to_dict(), f, default_flow_style=False, sort_keys=False)
logger.info(f"Inferred schema saved to {schema_output_file}")

# Step 6: Create Patterns from PostgreSQL tables
patterns = create_patterns_from_postgres(postgres_conn, schema_name="public")

# Step 7: Create Caster and ingest data
from graflo.caster import IngestionParams

caster = Caster(schema)

ingestion_params = IngestionParams(
    clean_start=True,  # Clear existing data first
)

caster.ingest(
    output_config=target_config,
    patterns=patterns,
    ingestion_params=ingestion_params,
)

# Cleanup
postgres_conn.close()

print("\n" + "=" * 80)
print("Ingestion complete!")
print("=" * 80)
print(f"Schema: {schema.general.name}")
print(f"Vertices: {len(schema.vertex_config.vertices)}")
print(f"Edges: {len(list(schema.edge_config.edges_list()))}")
print(f"Resources: {len(schema.resources)}")
print("=" * 80)

Resource Mappings¶

The automatically generated resources map PostgreSQL tables to graph elements. Each resource defines how table rows are transformed into vertices and edges:

Users Resource¶

The users resource maps each row in the users table to a users vertex:

What happens:

Each row in the users table becomes a vertex
Column values (id, name, email, created_at) become vertex properties
The id column is used as the vertex key/index

Products Resource¶

The products resource maps each row in the products table to a products vertex:

What happens:

Each row in the products table becomes a vertex
Column values (id, name, price, description, created_at) become vertex properties
The id column is used as the vertex key/index

Purchases Resource¶

The purchases resource creates edges between users and products vertices:

What happens:

Each row in the purchases table becomes an edge
The user_id foreign key maps to the source users vertex (using id as the match key)
The product_id foreign key maps to the target products vertex (using id as the match key)
Additional columns (purchase_date, quantity, total_amount) become edge weight properties
The edge connects the matched user vertex to the matched product vertex

Follows Resource¶

The follows resource creates self-referential edges between users vertices:

What happens:

Each row in the follows table becomes an edge
The follower_id foreign key maps to the source users vertex (using id as the match key)
The followed_id foreign key maps to the target users vertex (using id as the match key)
The created_at column becomes an edge weight property
The edge connects a user (follower) to another user (followed), creating a social network structure

Generated Schema Example¶

The inferred schema will look like this:

general:
    name: public
vertex_config:
    vertices:
    -   name: products
        fields:
        -   name: id
            type: INT
        -   name: name
            type: STRING
        -   name: price
            type: FLOAT
        -   name: description
            type: STRING
        -   name: created_at
            type: DATETIME
        indexes:
        -   fields: [id]
    -   name: users
        fields:
        -   name: id
            type: INT
        -   name: name
            type: STRING
        -   name: email
            type: STRING
        -   name: created_at
            type: DATETIME
        indexes:
        -   fields: [id]
edge_config:
    edges:
    -   source: users
        target: products
        weights:
            direct:
            -   name: purchase_date
            -   name: quantity
            -   name: total_amount
    -   source: users
        target: users
        weights:
            direct:
            -   name: created_at
resources:
-   resource_name: products
    apply:
    -   vertex: products
-   resource_name: users
    apply:
    -   vertex: users
-   resource_name: purchases
    apply:
    -   target_vertex: users
        map:
            user_id: id
    -   target_vertex: products
        map:
            product_id: id
-   resource_name: follows
    apply:
    -   target_vertex: users
        map:
            follower_id: id
    -   target_vertex: users
        map:
            followed_id: id

Key Features¶

Automatic Type Mapping¶

PostgreSQL types are automatically converted to graflo Field types with proper type information:

Integer types (INTEGER, BIGINT, SERIAL) → INT
String types (VARCHAR, TEXT, CHAR) → STRING
Numeric types (DECIMAL, NUMERIC, REAL) → FLOAT
Date/Time types (TIMESTAMP, DATE, TIME) → DATETIME
Boolean types → BOOL

Intelligent Table Classification¶

The system automatically classifies tables as:

Vertex tables: Tables with primary keys and descriptive columns
Edge tables: Tables with 2+ foreign keys representing relationships

Automatic Resource Creation¶

Resources are automatically created for each table with appropriate actors:

Vertex tables: Create VertexActor to map rows to vertices
Edge tables: Create EdgeActor with proper field mappings for source and target vertices

Type-Safe Field Definitions¶

All fields in the inferred schema include type information, enabling:

Better validation during ingestion
Database-specific optimizations
Type-aware filtering and querying

Data Type Handling¶

Special handling for PostgreSQL-specific types:

Decimal/Numeric: Automatically converted to float when reading from PostgreSQL
DateTime: Preserved as datetime objects during processing, serialized to ISO format for JSON
Type preservation: Original types are preserved for accurate duplicate detection

Data Flow and Processing¶

Understanding how data flows from PostgreSQL to the graph database:

Step-by-Step Data Processing¶

Connection: Establish connection to PostgreSQL database
Schema Inference: Analyze database structure and generate graflo Schema
Pattern Creation: Create patterns that map PostgreSQL tables to resources
Ingestion Process:
For each resource, query the corresponding PostgreSQL table
Transform each row according to the resource mapping
Create vertices from vertex table rows
Create edges from edge table rows, matching foreign keys to vertex keys
Add weight properties to edges from additional columns
Graph Database Storage: Store transformed data in the target graph database

Foreign Key Matching¶

The system uses foreign keys to match edge table rows to vertices:

Edge Table Row: {user_id: 5, product_id: 12, quantity: 2, total_amount: 99.98}
Source Vertex Match: Find users vertex where id = 5
Target Vertex Match: Find products vertex where id = 12
Edge Creation: Create edge from matched user vertex to matched product vertex
Weight Properties: Add quantity: 2 and total_amount: 99.98 to the edge

This matching happens automatically based on the foreign key relationships detected during schema inference.

Benefits¶

No manual schema definition: Schema is automatically inferred from existing database structure
Direct database access: No need to export data to files first
Automatic resource mapping: Tables are automatically mapped to graph resources
Type safety: Proper handling of PostgreSQL-specific types with automatic conversion
Flexible: Works with any 3NF PostgreSQL schema
Time-saving: Reduces manual configuration significantly
Maintainable: Schema can be regenerated when database structure changes

Use Cases¶

This pattern is particularly useful for:

Data Migration: Migrating relational data to graph databases
Graph Views: Creating graph views of existing PostgreSQL databases
Relationship Analysis: Analyzing relationships in normalized database schemas
Graph Analytics: Building graph analytics on top of transactional databases
Legacy System Integration: Integrating legacy relational systems with modern graph databases
Data Warehousing: Transforming relational data warehouses into graph structures

Customization¶

Modifying the Inferred Schema¶

After inference, you can modify the schema:

# Infer schema
schema = infer_schema_from_postgres(postgres_conn, schema_name="public")

# Modify schema as needed
# Add custom transforms, filters, or additional edges
schema.vertex_config.vertices[0].filters.append(...)

# Use modified schema
caster = Caster(schema)

Manual Pattern Creation¶

You can also create patterns manually for more control:

from graflo.util.onto import Patterns, TablePattern

patterns = Patterns(
    _resource_mapping={
        "users": ("db1", "users"),      # (config_key, table_name)
        "products": ("db1", "products"),
    },
    _postgres_connections={
        "db1": postgres_conf,  # Maps config_key to PostgresConfig
    }
)

Key Takeaways¶

Automatic schema inference eliminates manual schema definition for 3NF databases
Type mapping ensures proper type handling across PostgreSQL and graph databases
Direct database access enables efficient data ingestion without intermediate files
Flexible heuristics automatically detect vertices and edges from table structure
Type-safe fields provide better validation and database-specific optimizations
Resource generation automatically creates appropriate actors for each table
Schema customization allows modifications after inference for specific use cases

Next Steps¶

Explore the PostgreSQL Schema Inference API for advanced usage
Learn about PostgreSQL Type Mapping for custom type conversions
Check out Resource Mapping for custom resource creation
See the full example code for complete implementation

For more examples and detailed explanations, refer to the API Reference.
